Sailing Blocks

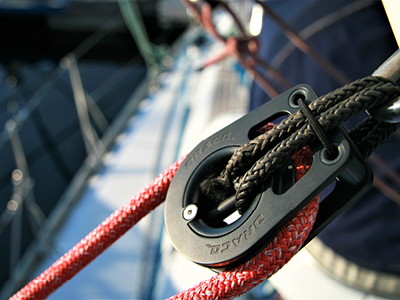

Aluminium soft loop block series (ASL)

This design was inspired by the idea to deliver an economical, high performance and light block to the market. To maintain attractive aesthetics, we have designed a strong and simple soft loop attachment system. With this design you can use a pre-fabricated soft loop attachment instead of stropping an untidy piece of line. This keeps the boat looking neat yet maintaining all the security and strength that is required.

At a weight of 170 grams, a working load limit of 2.3 tons and an attachment method that is quick and easy, we met all our design requirements to bring you an excellent product. The ASL-1 is available in a single block and a single block with becket format.

Please follow this link to the attachment instructions for the ASL-1.

Block Type: Single

Pulley Diameter: 70 mm

Rope Diameter: 12 mm

Weight: 175 gram

Working Load: 2 300 kg

Breaking Load: 4 700 kg

Becket Working Load: N/A

Becket Breaking Load: N/A

Material: Aluminium

Block Type: Single with Becket

Pulley Diameter: 70 mm

Rope Diameter: 12 mm

Weight: 194 gram

Working Load: 2 300 kg

Breaking Load: 4 700 kg

Becket Working Load: 1 400 kg

Becket Breaking Load: 2 800 kg

Material: Aluminium

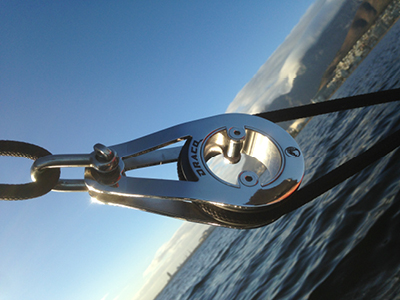

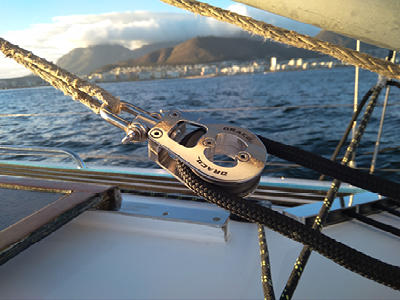

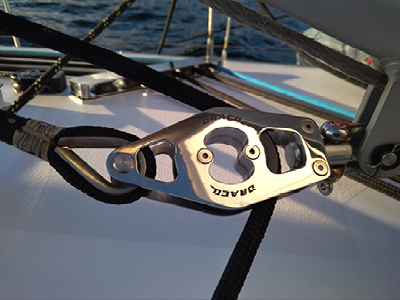

Stainless steel swivel pin block series (SSP)

The stainless-steel series is our premier swivel pin design. Machined from duplex stainless steel, this design is extremely strong. It is an elegant simple design that will enhance the aesthetics of any cruising or super yacht.

Metal mirror-finished, we have designed this product to be easily disassembled to be serviced and polished, to enable the customer to maintain the look of this block to a brand-new finish.

The SSP-1 is available in a single block and a single block with becket format.

Block Type: Single

Pulley Diameter: 55 mm

Rope Diameter: 10 mm

Shackle pin size: 8 mm

Weight: 247 gram

Working Load: 2 100 kg

Breaking Load: 4 300 kg

Becket Working Load: N/A

Becket Breaking Load: N/A

Material: Duplex Stainless Steel

Block Type: Single with becket

Pulley Diameter: 55 mm

Rope Diameter: 10 mm

Shackle pin size: 8 mm

Weight: 277 gram

Working Load: 2 100 kg

Breaking Load: 4 300 kg

Becket Working Load: 1 000 kg

Becket Breaking Load: 2 110 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 70 mm

Rope Diameter: 12 mm

Shackle pin size: 10 mm

Weight: 473 gram

Working Load: 3 500 kg

Breaking Load: 7 000 kg

Becket Working Load: N/A

Becket Breaking Load: N/A

Material: Duplex Stainless Steel

Block Type: Single with becket

Pulley Diameter: 70 mm

Rope Diameter: 12 mm

Shackle pin size: 10 mm

Weight: 529 gram

Working Load: 3 500 kg

Breaking Load: 7 000 kg

Becket Working Load: 1 300 kg

Becket Breaking Load: 2 560 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 85 mm

Rope Diameter: 14 mm

Shackle pin size: 12 mm

Weight: 699 gram

Working Load: 4 500 kg

Breaking Load: 10 000 kg

Becket Working Load: N/A

Becket Breaking Load: N/A

Material: Duplex Stainless Steel

Block Type: Single with becket

Pulley Diameter: 85 mm

Rope Diameter: 14 mm

Shackle pin size: 12 mm

Weight: 783 gram

Working Load: 4 500 kg

Breaking Load: 10 000 kg

Becket Working Load: 1 800 kg

Becket Breaking Load: 3 600 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 100 mm

Rope Diameter: 16 mm

Shackle pin size: 14 mm

Weight: 1 040 gram

Working Load: 6 000 kg

Breaking Load: 14 000 kg

Becket Working Load: N/A

Becket Breaking Load: N/A

Material: Duplex Stainless Steel

Block Type: Single with becket

Pulley Diameter: 100 mm

Rope Diameter: 16 mm

Shackle pin size: 14 mm

Weight: 1 165 gram

Working Load: 6 000 kg

Breaking Load: 14 000 kg

Becket Working Load: 2 100 kg

Becket Breaking Load: 4 500 kg

Material: Duplex Stainless Steel

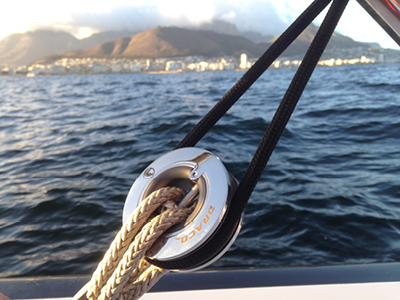

Stainless steel soft loop sailing block series (SSL)

Our unique design allows for a spectra soft loop shackle. This block is suitable for running backs and high load purchases. It is easy to assemble with an optional pin depending on your attachment preference, using either a double eye spliced attachment or a single strop. This block is easy to attach to a padeye or to be spliced onto a runner.

The rounded inner prevents any damage to attachment lines. This block is best used at the top section of a mechanical system.



Please follow this link to the attachment instructions for the SSL-1.

Block Type: Single

Pulley Diameter: 85 mm

Rope Diameter: 14 mm

Weight: 423 gram

Working Load: 3 000 kg

Breaking Load: 6 000 kg

Material: 316 Stainless Steel

Stainless steel directional block series (SDR)

Our directional blocks are designed for a direct sidewall to shackle attachment. Manufactured from duplex stainless steel, these blocks are the strongest in our range.

Metal mirror-finished, we have designed this product to be easily disassembled to be serviced and polished, to enable the customer to maintain the look of this block to a brand-new finish.

Block Type: Single

Pulley Diameter: 55 mm

Rope Diameter: 10 mm

Shackle pin size: 8 mm

Weight: 184 gram

Working Load: 2 100 kg

Breaking Load: 4 300 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 70 mm

Rope Diameter: 12 mm

Shackle pin size: 10 mm

Weight: 366 gram

Working Load: 3 500 kg

Breaking Load: 7 000 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 85 mm

Rope Diameter: 14 mm

Shackle pin size: 12 mm

Weight: 517gram

Working Load: 4 500 kg

Breaking Load: 10 000 kg

Material: Duplex Stainless Steel

Block Type: Single

Pulley Diameter: 100 mm

Rope Diameter: 16 mm

Shackle pin size: 14 mm

Weight: 814 gram

Working Load: 6 000 kg

Breaking Load: 14 000 kg

Material: Duplex Stainless Steel

Deck Organiser

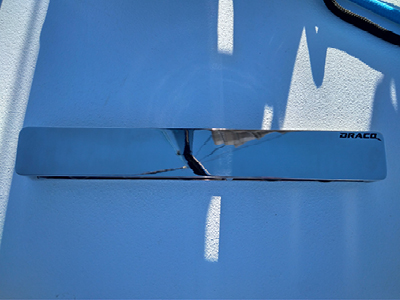

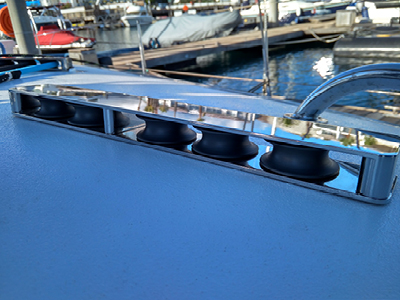

Stainless steel deck organiser series (SDO)

Draco’s five-way deck organiser was designed with clean line-aesthetics in mind. Machined from a single piece of 316 stainless steel, the mechanically polished mirror finish will bring a sense of elegance and glamour to any yacht that carries it.

Max number of ropes: 5

Max rope size: 16 mm

Length: 372 mm

Width: 51 mm

Height: 28 mm

Weight: 2 123 gram

Material: 316 Stainless Steel

Fairlead

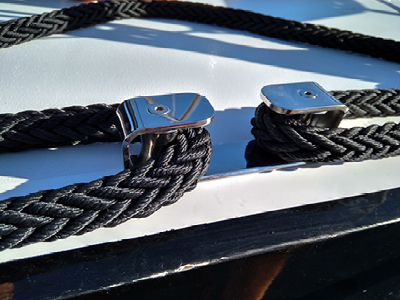

Stainless steel fairlead series (SFL)

Draco designed a frictionless stainless-steel fairlead to mitigate constant damage to mooring lines. The fairlead is fitted with stainless steel rollers, with self-lubricating engineering polymer bushes, protecting the mooring lines. The product was designed with ease-of-use, ease-of-installation, reliability and elegance as priorities.

Size is an important factor when selecting a fairlead. Most boats are allocated with undersized fairleads, which are designed to withstand small deflective loads for boats which are commonly moored in the calm Mediterranean style waters. During the design of our fairleads, we strive to marry the strength of the fairlead, the size of the attachment of the fairlead to the boat, along with the size of line that will be needed to secure the boat to the mooring.  All too often, the mooring lines that are necessary for the size of boat never fit easily into the fairlead, making docking the boat unnecessarily frustrating and at times stressful.

Max rope size: 36 mm

Width: 34 mm

Length: 148 mm

Height: 48 mm

Weight: 689 gram

Material: 316 Stainless Steel

Solid ring guides

Aluminium ring guide series (ARG)

We present our solid ring guides as a light weight option for use on running rigging. Machined from high tensile and corrosion resistant 6082 T6 aluminium, Draco’s hard anodised ring guides are strong, low friction and slow to wear.

Draco ring guides provide an alternative to sailing blocks for deflective running rigging, lazy jacks, inhaulers and running backs.

Inner Rope Size Max: 5 mm

Outer Rope Size Max: 2 mm

Outer diameter: 14.5mm

Width: 7mm

Weight: 1.4 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 8 mm

Outer Rope Size Max: 5 mm

Outer diameter: 21.5mm

Width: 9.5mm

Weight: 4.1 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 10 mm

Outer Rope Size Max: 7 mm

Outer diameter: 27mm

Width: 12.5mm

Weight: 8 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 12mm

Outer Rope Size Max: 9mm

Outer Diameter: 32mm

Weight: 13 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 16mm

Outer Rope Size Max: 12mm

Outer Diameter: 40mm

Weight: 22.8 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 20mm

Outer Rope Size Max: 14mm

Outer Diameter: 48mm

Weight: 30.8 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 25mm

Outer Rope Size Max: 20mm

Outer Diameter: 63mm

Weight: 75.5 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.

Inner Rope Size Max: 30mm

Outer Rope Size Max: 25mm

Outer Diameter: 78mm

Weight: 136 gram

Material: Aluminium

Colour and surface finish options: Black hard anodised 55μ. Red, Green or Gold anodised 15μ.
